- brief introduction
- technical parameter
- Product size
Application
ZMW50-1000 conventional circuit breaker (hereinafter call “breaker”) is suitably used in the distribution circuit of AC 50Hz, rated voltage 400V, ?rated current 200 ~1000A, to distribute electric power and protect circuit and equipment from overloading, short circuit, under-voltage, single phase earthing, residual current faults. At normal working conditions the breaker can be used to transfer the distribution lines or start the motor non-frequently. The breaker provides the intelligent protection function and high precise selective protection, improve the reliability of power supply, and prevent unnecessarily cutting off power supply. The breaker has isolation function.
Normal Working Condition
Temperature: -5℃-+40℃, the average can't more than+35℃ with in 24 hours.
Altitude: not higher than 2000m for the installation site.
When the ambient ?air temperature is +40℃, the relative humidity of the air shall not be higher than 50%; a higher relative humidity is allowed at a lower temperature; special measures shall be taken for the condensation ?occasionally produced due to temperature change.
Degree of Pollution: III
Use Category: B type
Installation conditions: the mounting inclined angel shall not more the +5°

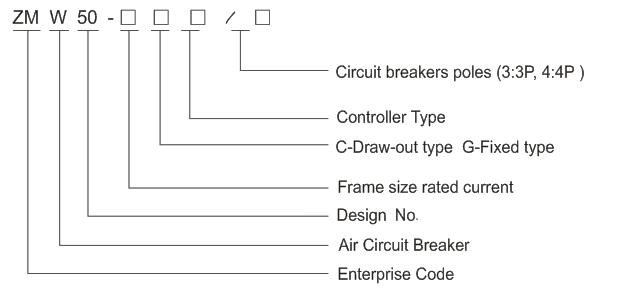

Model
Main Techincal Data
1.Circuit breakers rated insulation voltage 690V; rated working voltage of 400V, 690V
2.Rated short circuit making capacity of breaker shall not be less than 2.1Icu.
3.Circuit breakers rated current?

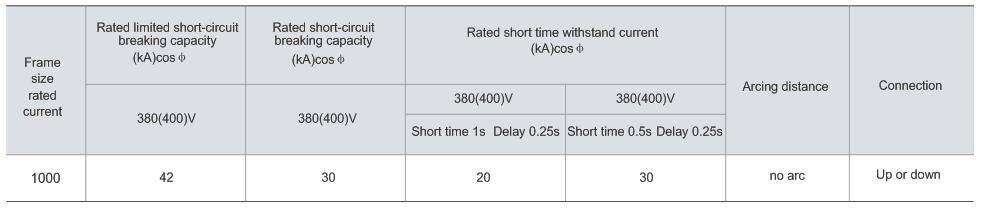

4.Rated short circuit breaking capacity and short time withstand current?

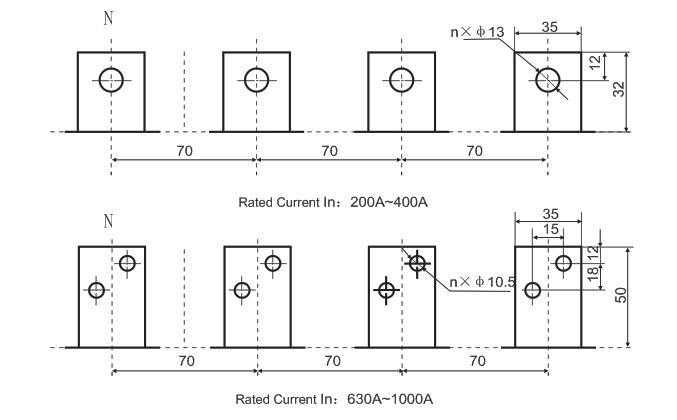

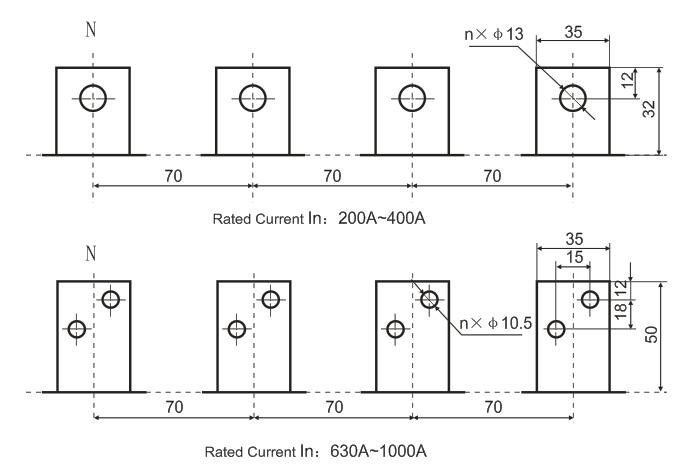

External And Installation Size

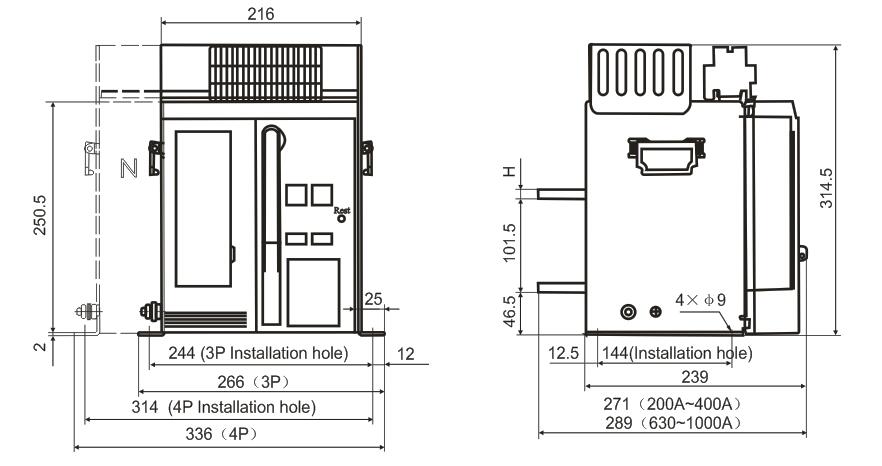

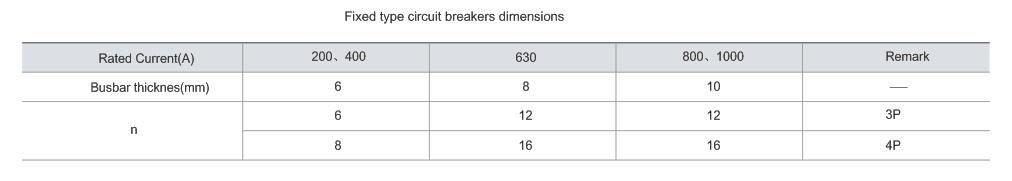

1.Faxied type

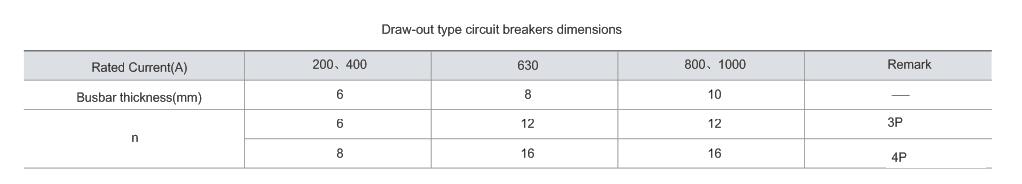

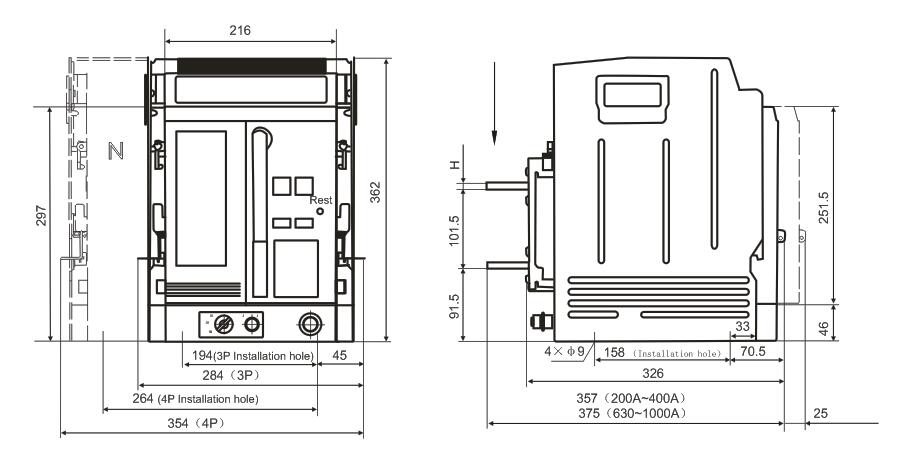

2.Draw-out type
