Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
XQP series starting cabinet is applicable to three-phase AC 50HZ/380V , 300KW or below, for starting, running and stopping control. It also can be used for occasions where require infrequent and irreversible operation.
Main fucntions and features
The starting process of the starter cabinet is connected with a frequency sensitive varistor in the rotor circuit. The impedance value decreases with the increase of the motor speed, and the impedance at the start is large, so as to limit the starting current. The starter cabinet has short circuit, phase failure and overload protection.

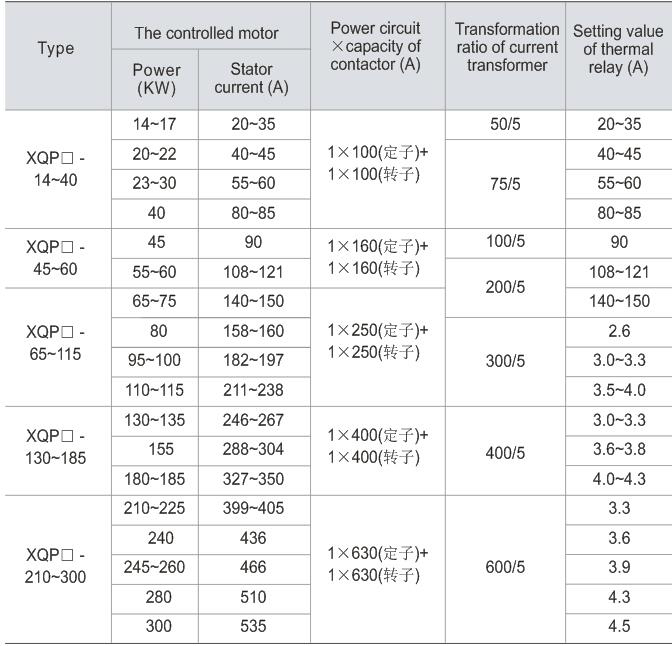

Main Technical Data

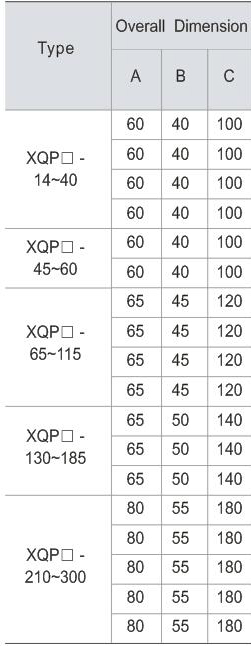

External And Installation Size
