Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
Electric ratings: AC50Hz, AC 500V/DC 440V;
Application: applied for change-over of circuit. In addition, it also can be used to directly control 5.5kW three-phase squirrel-cage motor;
Standard: IEC60947-5-1.

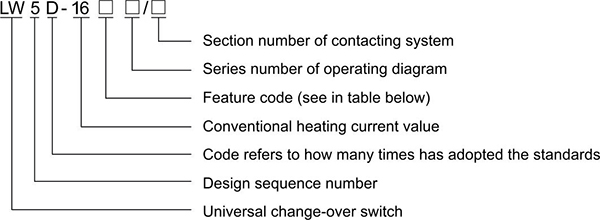

Model

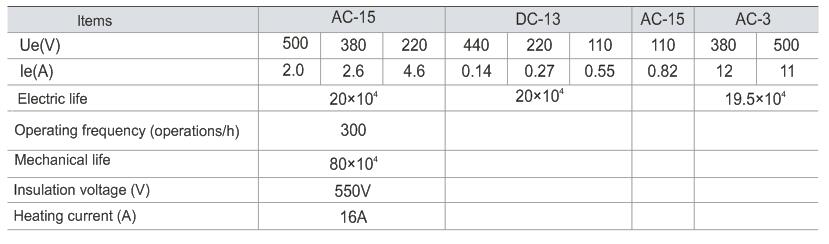

Main Technical Data
Others

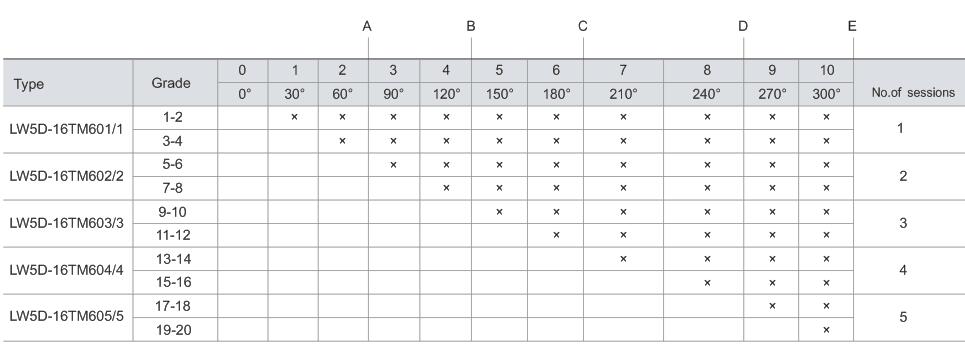

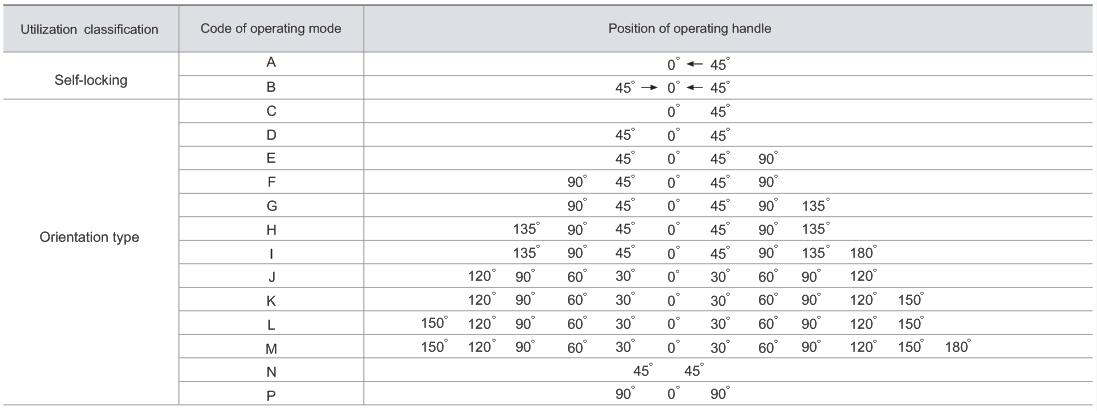

Classifications of operating mode and operating machine position combination
Classifications
It can be classified into application for master control and direct control over 5.5kW motor according to purposes
Operating modes can be classified into orientation type and self-restoration type.
The Section number of contact system can be classified in to 16 kinds, which are from 1 to 16. Appearance of operation mechanism can be classified into rotary type and ball headed handle type.

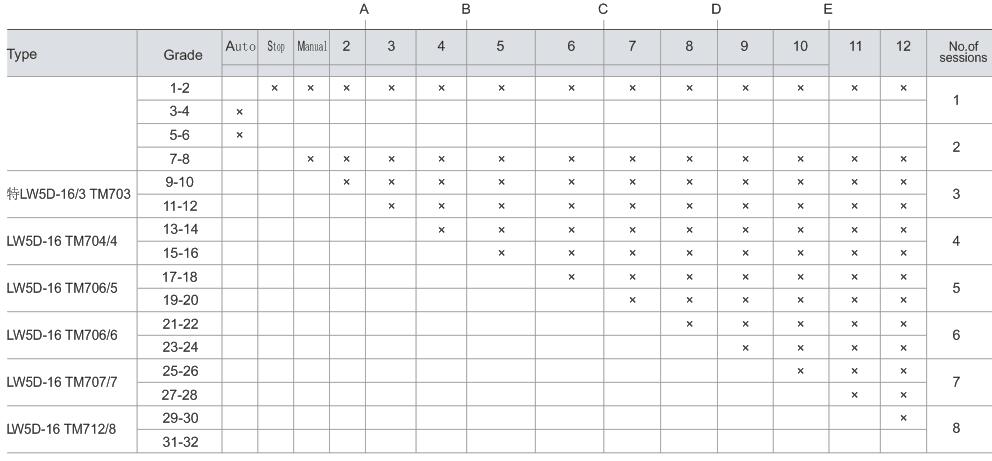

Capacitor main cabinet has zero position, automatic, manual change?over switches
Capacitor main cabinet has zero position, automatic, manual change-over switches

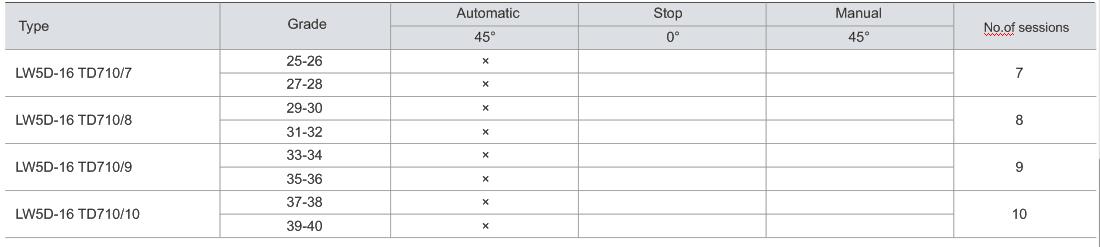

Capacitor and auxiliary switch cabinet

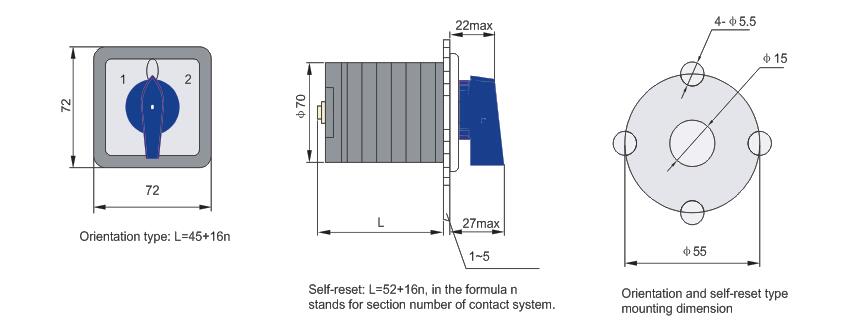

External And Installation Size
