Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
HL30-100 series switch disconnector is operating in the distribution and control circuit of AC50Hz, rated working voltage 400V and below, also used to control various asynchronous motors, electric appliances or lighting device with small capacity, widely in mineral enterprises, high buildings, commercial & residential houses.Applicable standard: GB14048.3, IEC60947-3, Obtained CCC, CE certification.
Normal operating conditions
Ambient air temperature: -25°C~+60°C
Altitude: not higher than 2000m
Pollution degree: 2.
Use category: AC-22A, AC-21B.
Installation category: II, III
Installation: TH35-7.5 DIN railm the mounting surface and the vertical gradient of not more than 5 °.
Connection: screw clamping wiring, 100A,125A torque: 3.5Nm; 32A, 63A torque: 2.0Nm

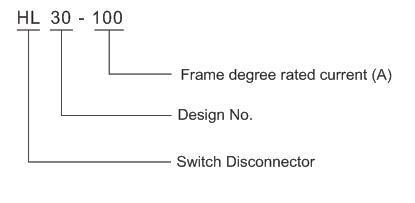

Model
Main technical data
Main specifications
Rated Current Ie: 32A, 63A, 100A, 125A.
Poles: 1P, 2P, 3P, 4P.
Technical parameters
Rated insulation voltage Ui: 500V;
Rated operating voltage Ue: 230V (1P), 400V (2P, 3P, 4P).
Rated operating current Ie: 32A, 63A, 100A, 125A.
Rated impulse withstand voltage Uimp: 4kV (2000m);
Rated short time withstand current Icw: 12Ie, power-on time 1s;
Rated short-circuit making capacity Icm: 20Ie, power-on time 0.1s;
Rated making and breaking capacity: 3Ie, 1.05Ue, COSφ = 0.65;
Operating performance: Mechanical life 8500 times, electrical life 1500 times.

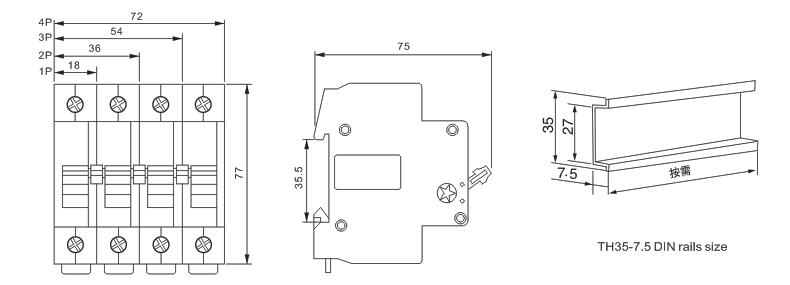

External And Installation Size
