Application

ZMZ-C series intellect integration power capacitor is new reactive compensation equipment which is 0.4kv low voltage distribution electric net，high save power，reduce wire loss，improve power factor and power quality. It make up by intellect testing unit over zero input switch circuit and protect unit，two pcs（△）or one pc（Y）low voltage capacitor. This capacitor replace for low voltage power capacitor which is make up by intellect controller fuse and combine switch or contactor，thermal relay. Low voltage power capacitor indicate lighting and other component of bank which connect one conductor make up to auto reactive compensate equipment. It change tradition reactive compensate big volume and very strong instruction mode. So new power capacitor has good compensate function，low volume，low power loss，good price，save cost，and using convenient，maintain is easy and long life，reliability is best，it suitable modern intellect electric net reactive compensate demanding.

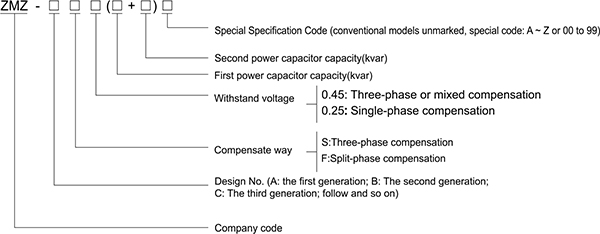

Code and implication

Wiring Diagram

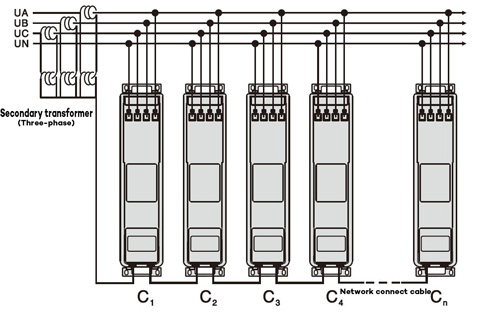

Three-phase Compensation Diagram

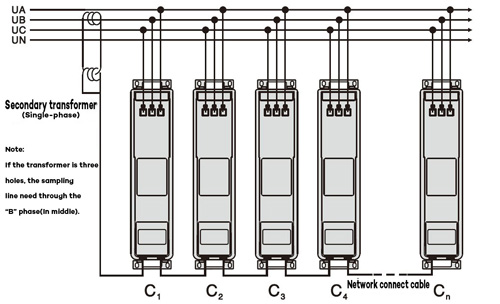

Single-phase compensation and Hybrid compensation
