Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
LMK2(BH) - 0.66 type current transformer is mainly used for indoor, for rated voltage up to and including 0.66 kV, rated frequency 50Hz ac circuit as the electric current and electric energy measurement and relay protection. Product is a plastic shell type current transformer, are widely used in the complete sets of cabinet put oneself in another's position, its installation method can be used bus fixed and base plate fixed installation method, suitable for any direction installation, a conductor for bus or cable.
Standard: GB20840

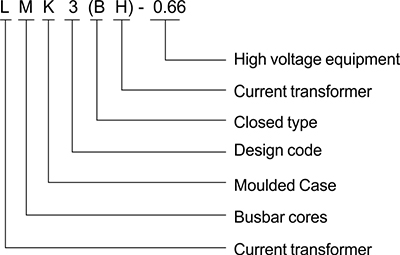

Code and implication
1. Installation sites: Indoor
2. Ambient temperature : (-5~40)℃
3. Ambient humidity: ≤80%
4. Altitude: ≤1000m
5. Atmospheric conditions: no serious impurity in the atmosphere.

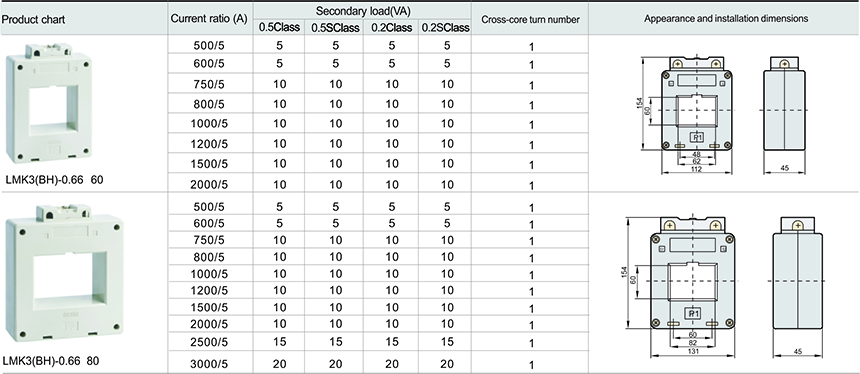

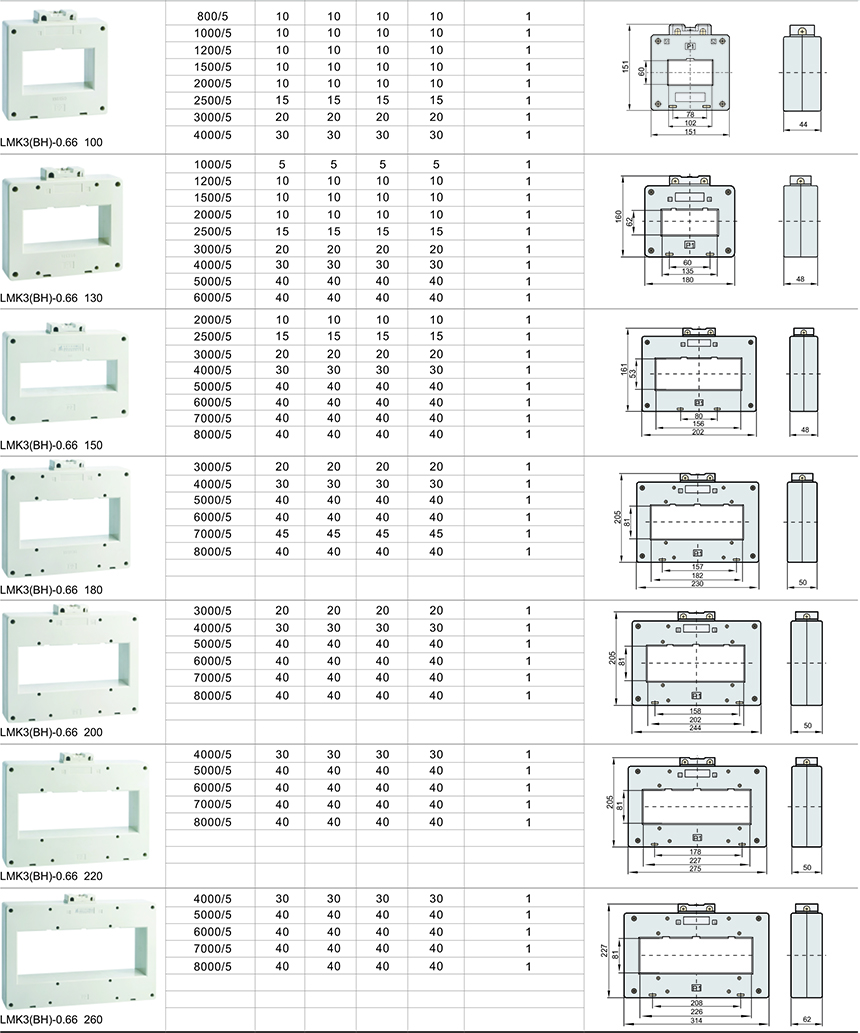

Technical parameters and installation size
