Print current pageProduct Description
- brief introduction

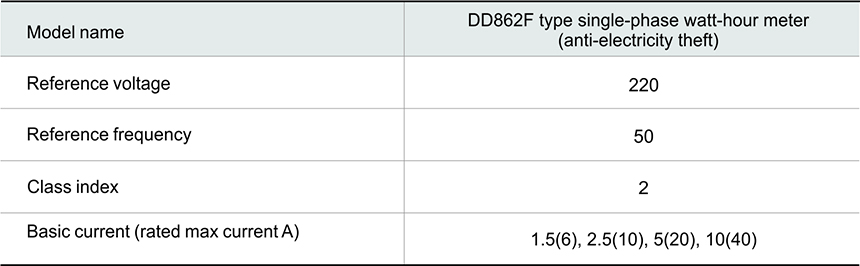

- technical parameter
- Product size
Application
It is the single-phase active energy watt-hour meter?with multi functions of anti-electricity theft on an?induction watt-hour meter, its performance is the?same with that of DD862 series watt-hour meter,?even, the connection circuit is completely same?with that of DD862 series watt-hour meter, so it is?convenient to main-tain and operate it. Besides, its?technical parameter is the same with that of DD862?series watt-hour meter too.?
Normal working conditions and?installation conditions
1. Specified working temperature：-10℃~45℃；
2. Utmost working temperature：-25℃~55℃；
3. Relative humidity: ≤85%?(at environment temperature23℃)；
4. There shall be no corrosive gas and dust, mold?and insect in theair.?
Main Technical data
1. Anti-wire inversing
? ? If the electricity is stolen by the way of exchanging the inlet wire and outlet wire of watt-hour meter, this?watt-hour meter register which can accumulate positively and negatively still counts positively as per speed?of 1~5 times, however this watt-hour meter rotates inversely, so that the thief can't steal the electricity and?is punished.?
2. Anti-unhook
? ? The metallic hook is connected in the meter that can't be removed, so that the electricity can't be stolen for?stopping running of watt-hour meter, which is resulted in metallic hook is unconnected.?
Produce Specification

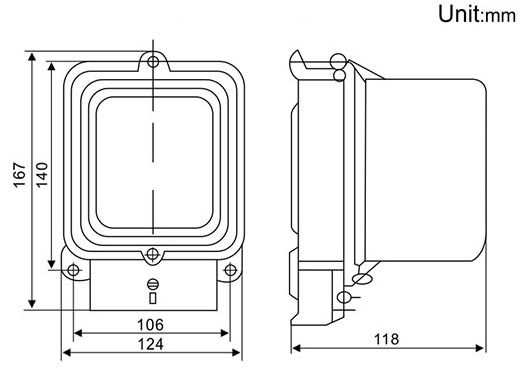

External And Installation Size
