DJGZ23-ZM01 type collector is one of the important parts of electric acquisition system, to collect and analyze the information on electric load side via modern digital communication technology, plug-in technology, computer software and hardware and etc.
This product has excellent electromagnetic compatibility, able to resist high voltage sharp peek pulse, strong magnetic field, high electrostatic, lightning surge, able to operate under large temperature range, wide voltage scope; the parameters can be modified locally or remotely, support software updated locally or remotely, all data can be saved in FLASH storage device with large capacity on mainboard, the shell made of ABS waterproof material, wall hung type, small size, easy to be mounted.
The product has powerful function, easy to be used, run steadily, convenient to be maintained, high reliably, large storage, able to meet well with user demand.
Main Technical data
1. Normal working voltage: 0.8Un ~ 1.2Un
2. Active Power: ≤10W
3. Apparent Power: ≤15VA
4.Clock accuracy (Day error): ?≤0.5s / d (0 ℃ ~ + 40 ℃ : ± 2ppm;-40 ℃ ~ + 85 ℃: ± 3.5ppm)
5. Battery life: 10 years
6. Battery continuous working time: ≥5 years
7. After power data retention time: ≥10 years
8. Normal operating temperature: -25 ℃ ~ + 55 ℃
9. Limit working temperature: -45 ℃ ~ + 75 ℃
10. Storage and transport temperature: -50 ℃ ~ + 85 ℃
11. Storage and transport humidity: ≤95%
12. Master of the Statute: Q / GDW1376.1-2013 "power?user information collection Body system communication?protocol; and Adopting the master terminal?communication protocol. "
13. Panel Display: 160x160 dot matrix monochrome?LCD, LED backlight
14. Keyboard: 6 buttons: Move up, down, left, right,?cancel, confirm
15. Local Transmission Interface: 1 Road Maintenance?Maintenance serial RS232, 2way RS-485, ?1 channel?USB, 1 road modulated infrared interface, 1 GPRS?communication interface.
16. Remote Upgrade: Support
17. Storage capacity: 64MB FLASH
18. Reliability: MTBF≥10x104h

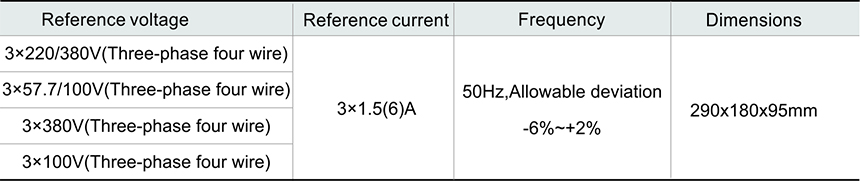

?Specification

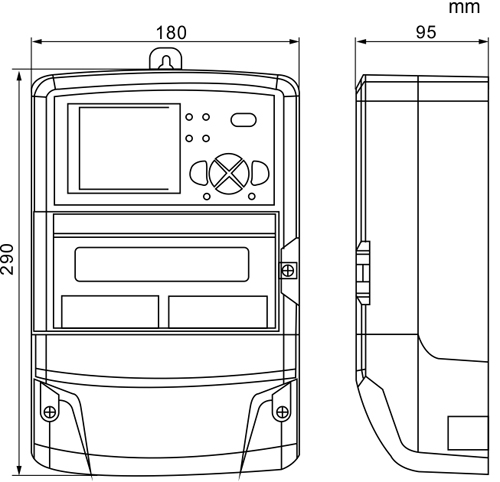

External And Installation Size
