- brief introduction
- technical parameter
- Product size
Application
DCZL23-ZM10 type collector is one of the important component of LV power line carrier AMRS, in compliance with the standards of Q/GDW1375.3-2013, Q/GDW1374.2-2013 and etc “Information Acquisition System for Power User” issued by State grid Corporation, adopt modern digital communication technology, computer software and hardware technology, low voltage power line carrier technology to collect electric energy values.
This collector has excellent electromagnetic compatibility, wide applicable temperature scope, able to seek and modify the parameters of the equipment, the shell of collector made of flammable ABS material, wall-hung structure, small size, easy installation.
Main Technical data
1. Working power supply rated voltage: AC220V±20%
2. Rated frequency: 50Hz, Accuracy - 6% ~ + 2%
3. Dimensions: 100 x40x50mm
4. Normal working temperature: 25 ℃ ~ + 55 ℃
5. Limit working temperature: - 40 ℃ ~ + 70 ℃
6. Storage and transportation temperature: - 40 ℃ ~ + 70 ℃
7. Storage and work humidity: ≤95% ?
8.Meters specifications: DL/T645-1997 DL/T645-2007
9. Data transmission interface: 1 carrier communication interface,?1 way RS485 interface meter, 1 way Infrared maintenance
10. Reliability: MTBF≥10x104h

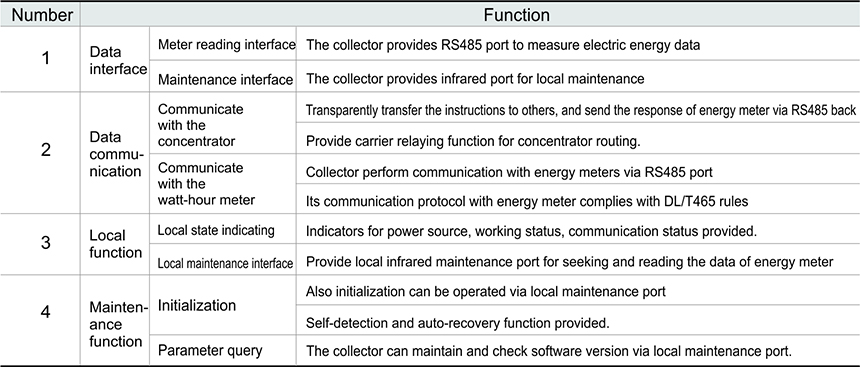

Function Features

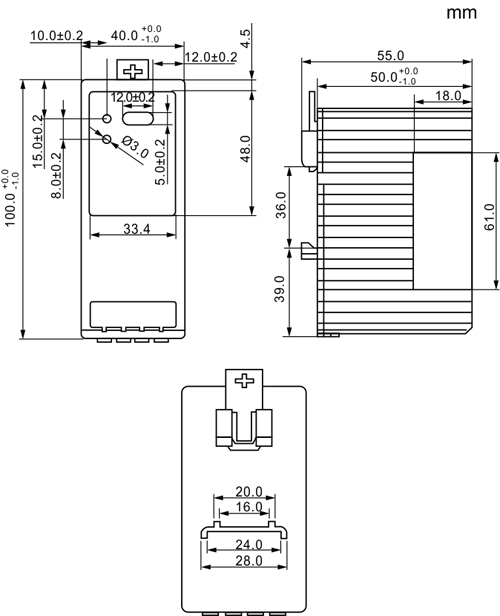

External And Installation Size
